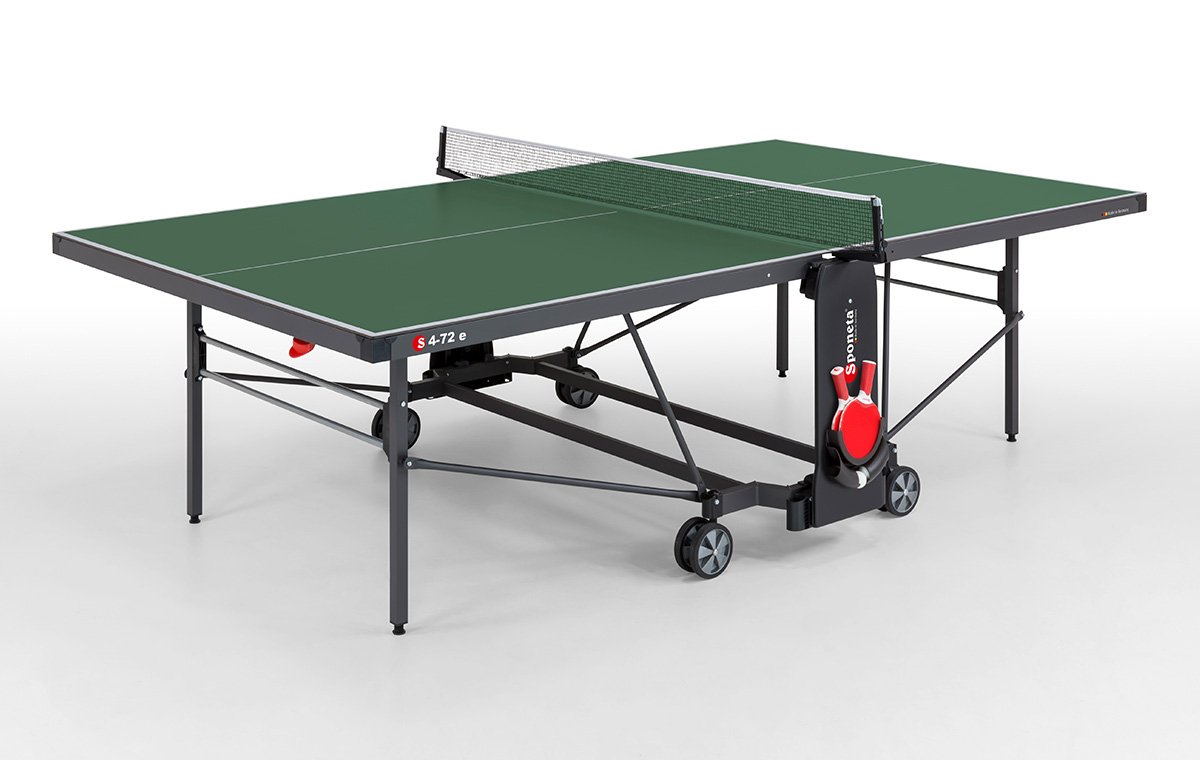

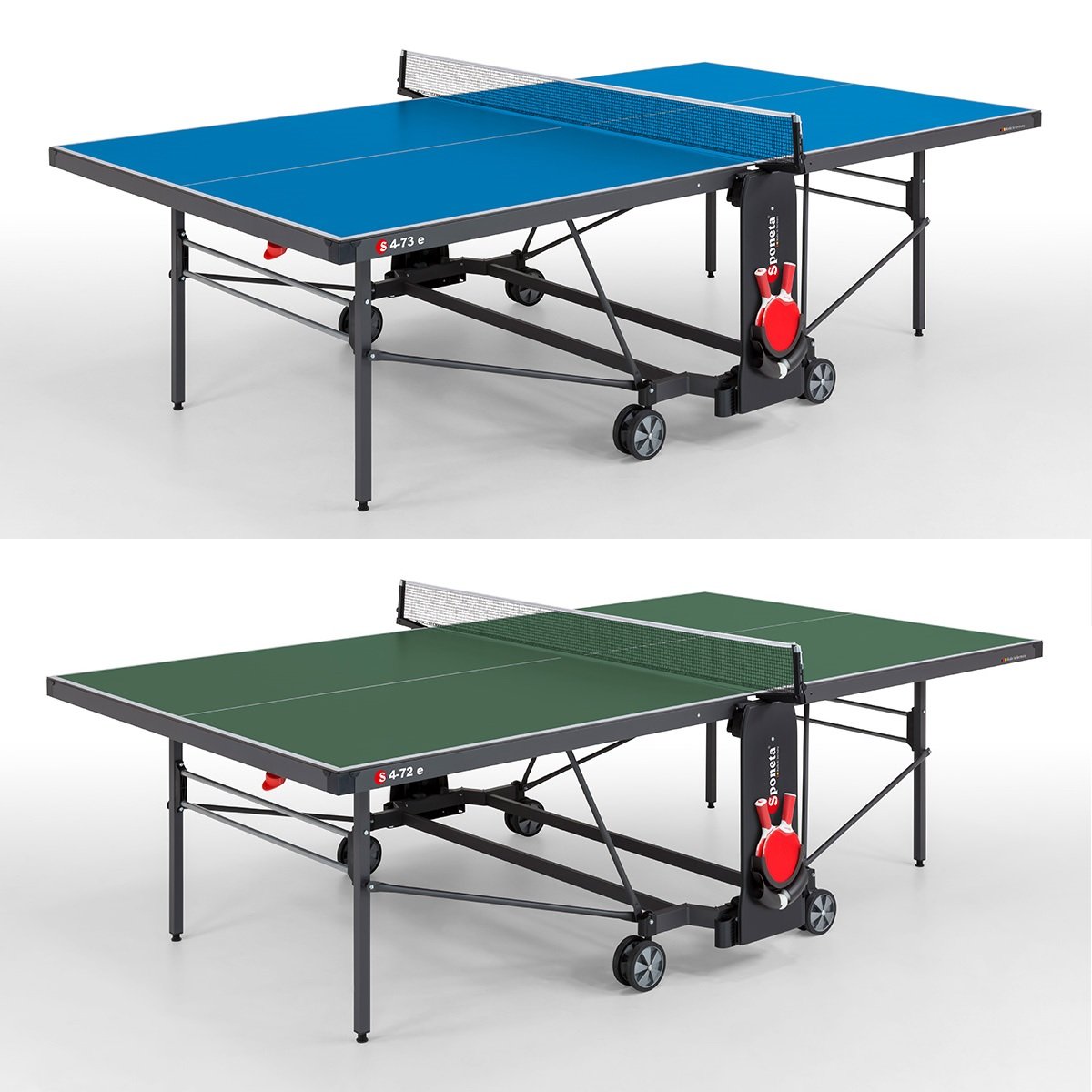

S 4-72 e / S 4-73 e

model specification

• Sponeta S4 line outdoor
• outdoor table, weatherproof
• european standard: EN-Norm 14468-1
• for amateurs with high demands

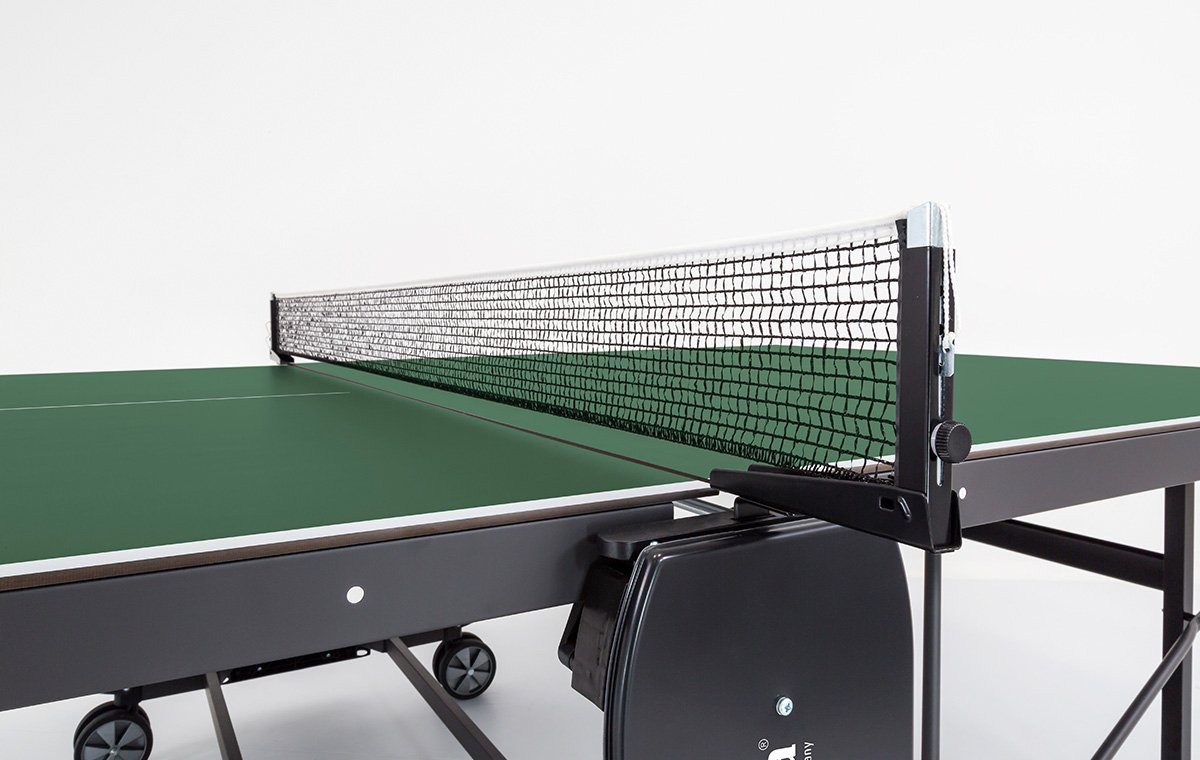

Net set

Perfekt II

• stationary, compact net set
• net holding profile with fixing plate, post outside and inside for adjusting the height with a height adjusting screw, powder-coated
• net: black, with loop (Ø 8 mm)
• stretching cord with hook for tightening the upper edge of the net
• measurement: l= approx 180 cm x h=15,2 cm
• plastic keder Ø 6 mm in accordance with the height of the net

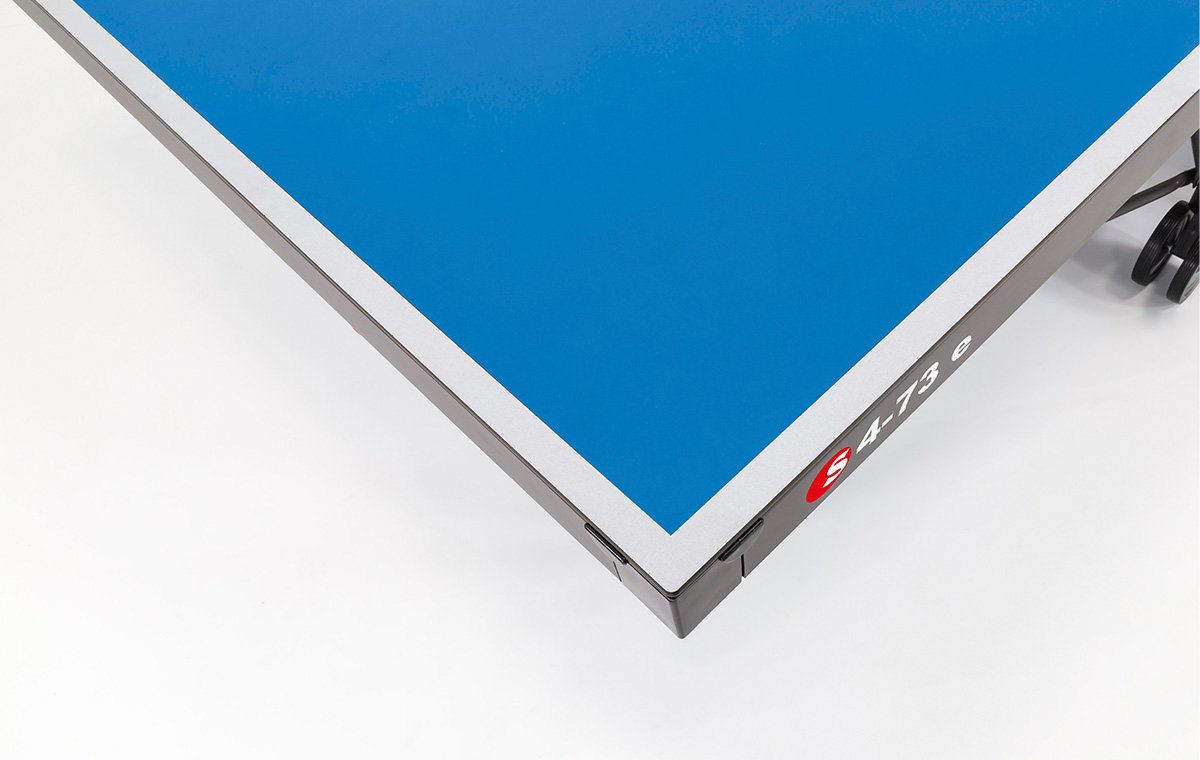

Table top / frame profile

• melamine resin board 5 mm
• colour: blue
• limited impact-resistant
• top resistant against dampness
• strongly fixed with metal frame
• frame profil L-50 mm, powder-coated

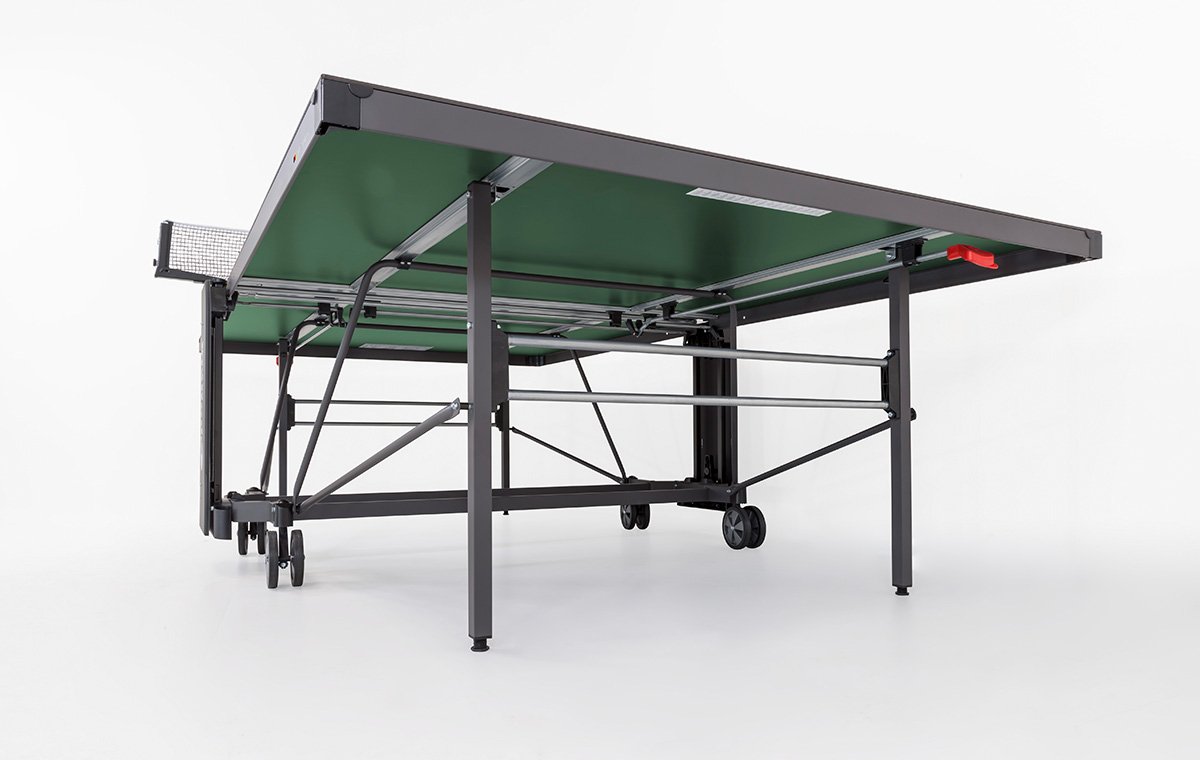

Undercarriage

• Compact (type 4b)
• spuare-profile 30 x 30 mm, powder-coated

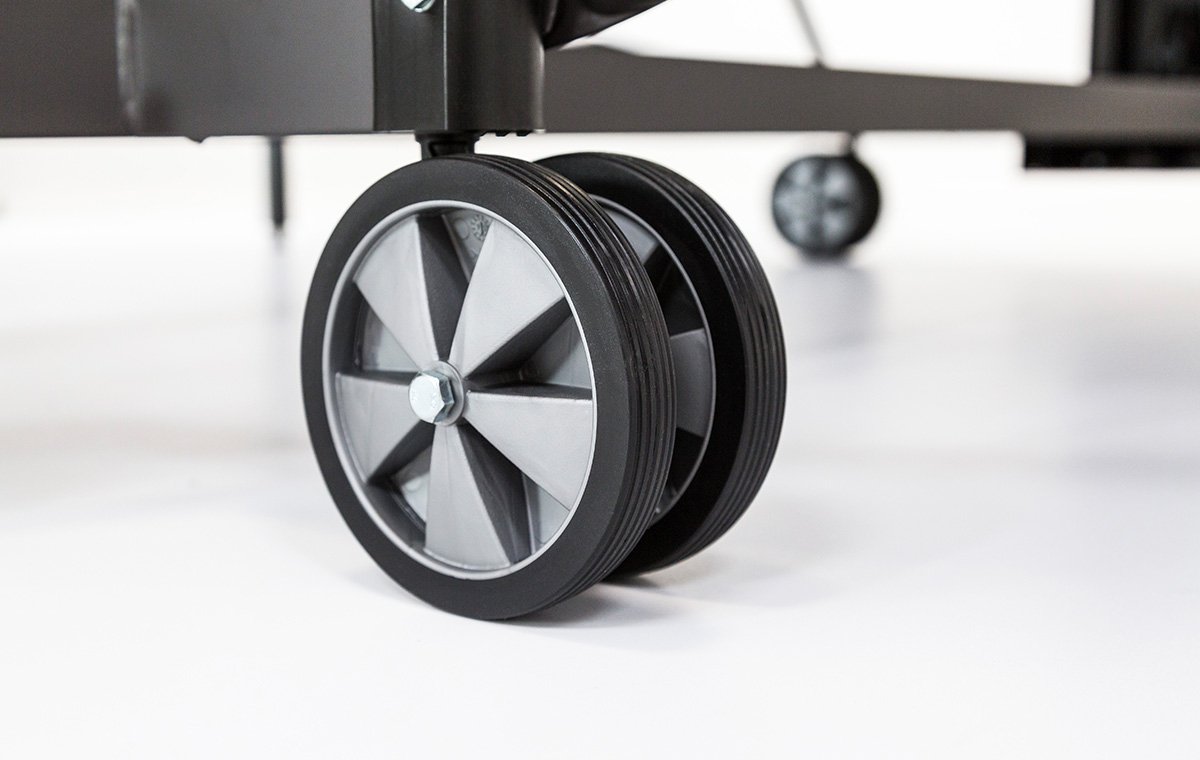

• 4 double wheels (diameter 128 mm) with rubber tread, all wheels are manoeuvrable

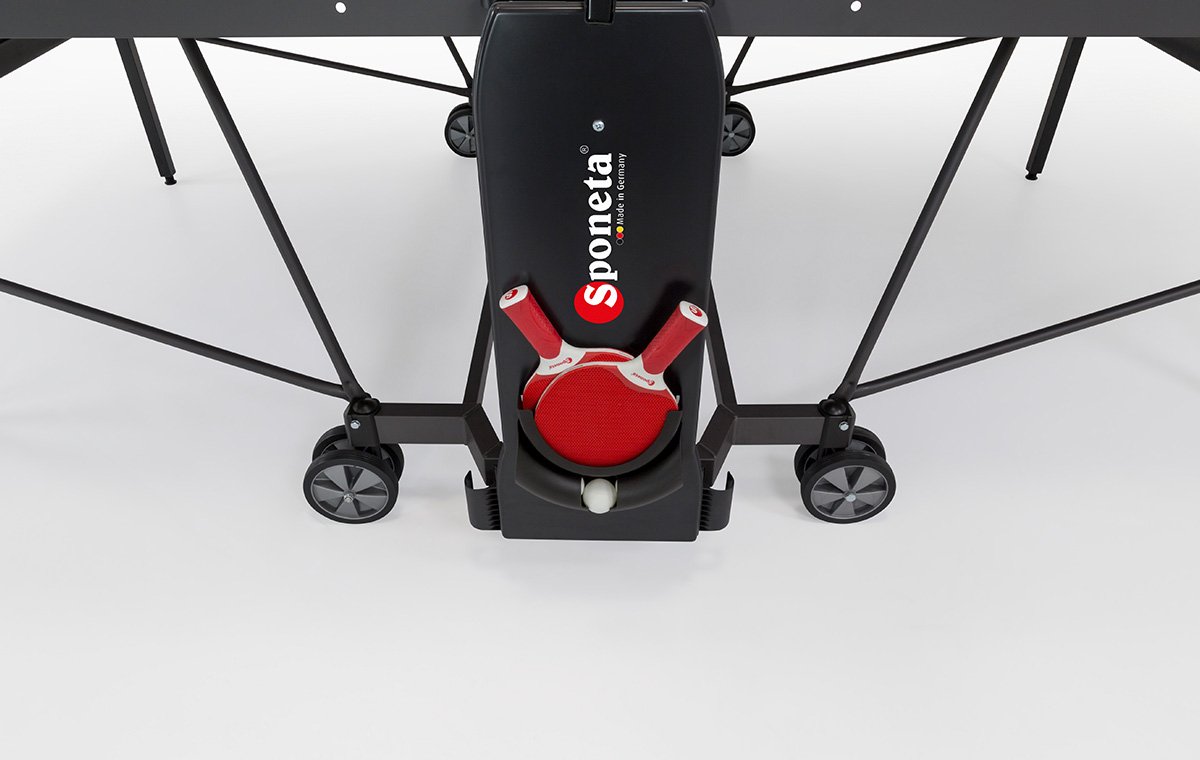

• bat and ball holder on one side

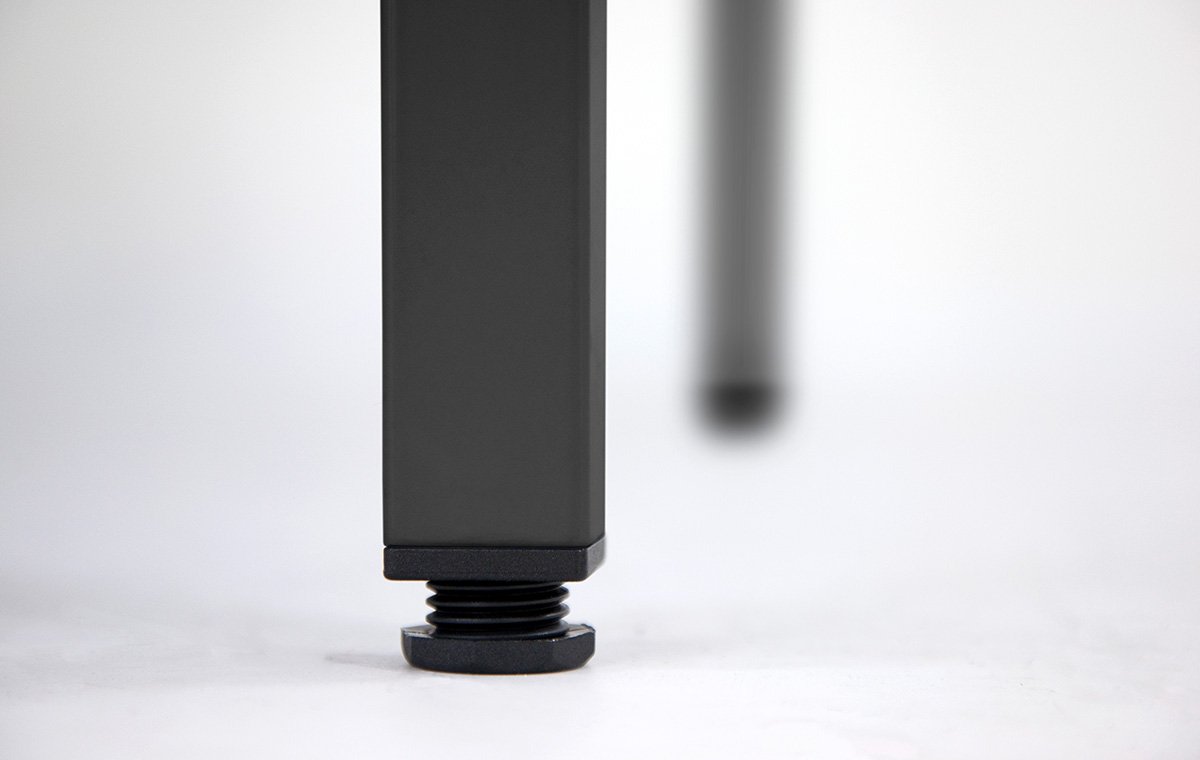

• balance of different standing positions and unevenness up to 30 mm through height adjustment on the outer legs

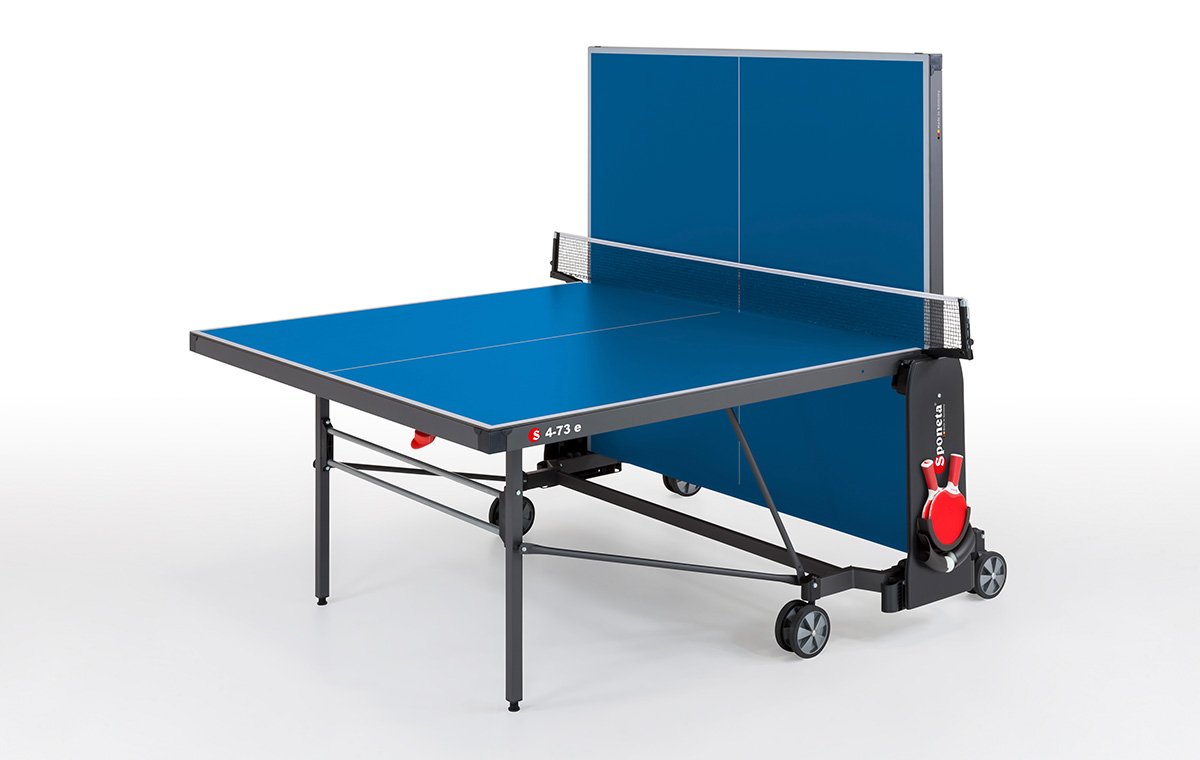

• playback-position possible (for solo training)

Locking system

• SMS (Smart Manual System)
• handle visible from all sides and in any position

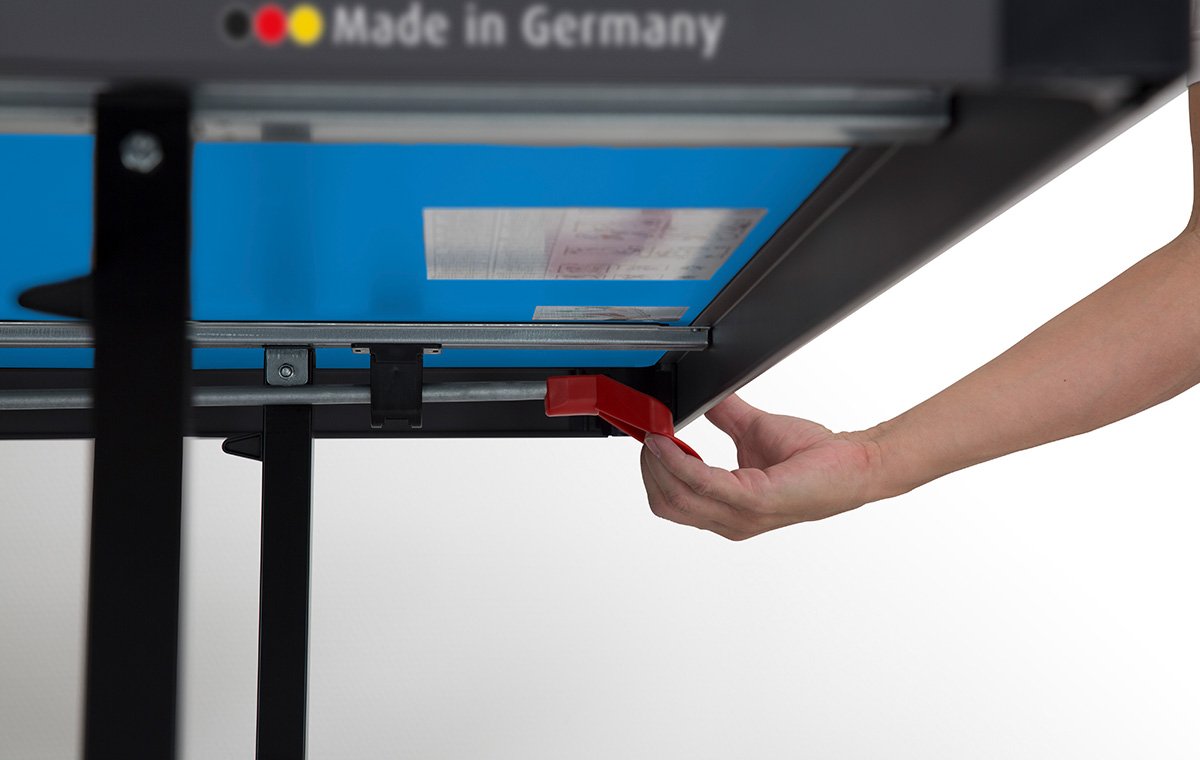

• drawbar underneath the tabletop unlocks both of the safety devices simultaneously
• simple and automatic click-mechanism in storage and playing position of the table

Details

• frame profile colour: blackgrey
• undercarriage colour: blackgrey
• including assembly instruction with language booklet
• accessories (bats and balls) not included in scope of delivery

Dimensions

• playing position: l=274 cm x w=152,5 cm x h=76 cm (in accordance with international dimensions)

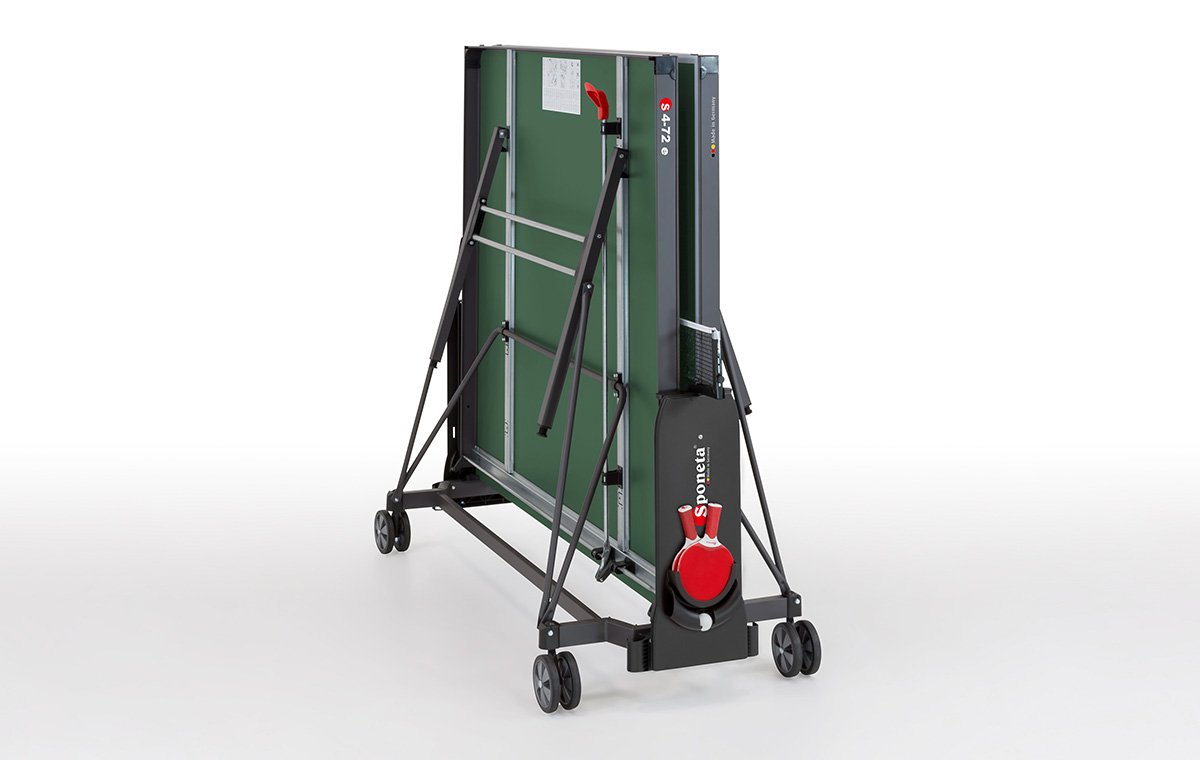

• storage position: l=152,5 cm (with net 184 cm) x w=72 cm x h=155 cm

Packaging

Type A – Single carton for vertical transport

• stable single carton for one piece of table tennis table
• labeling of the cartons with product description, article number and GTIN-Code
• H = 162 x L = 144 x B = 9 – 15,5 cm (depending on the model)

Weight

• net weight: 59.5 kg
• gross weight (including packaging): 65 kg
